環形電感封裝尺寸

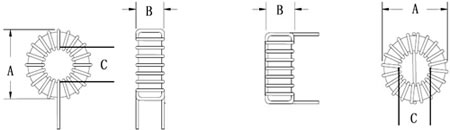

發布時間:2014-11-28-12285環形電感封裝尺寸：
|
規格 |
ФA |
ФC |
B |
|
TC3026 |
7.80 |
3.84 |
3.25 |
|
TC3726 |
9.53 |
5.21 |
3.25 |
|
TC4426 |
11.20 |
5.82 |
4.04 |
|
TC5026 |
12.70 |
7.70 |
4.83 |
|
TC5026B |
12.70 |
7.70 |
6.35 |
|
TC6826 |
17.50 |
9.40 |
6.35 |
|
TC6826A |
17.50 |
9.40 |
9.53 |
|
TC8026 |
20.20 |
12.60 |
9.53 |
|
TC9026 |
20.20 |
14.00 |
7.42 |
|
TC9426 |
22.90 |
14.20 |
11.10 |
|
TC10262 |
23.90 |
14.50 |
11.10 |
|
TC13026 |
26.90 |
19.80 |
11.10 |
|
TC13226 |
33.00 |
17.80 |
14.50 |
|
TC15726 |
33.00 |
24.10 |
6.35 |
|
TC03750 |
39.90 |
4.75 |
6.35 |
|
TC03750G |
9.52 |
4.75 |
6.35 |
|
TC03751 |
9.52 |
4.75 |
6.35 |
|
TC03751G |
9.52 |
4.75 |
6.35 |
|
TC06250G |
15.88 |
8.89 |
4.70 |
